In Silico Analysis of Differentially Expressed Genes in Colorectal Carcinoma

Sobia Hassan1*, Talat Mirza2, Ambrina Khatoon2, Uzma Bukhari3, Fouzia Shaikh1
Adv. life sci., vol. 10, no. 1, pp. 37-41, March 2023
*Corresponding Author: Samira Rabiei (Email:
Authors' Affiliations
 1. Department of Pathology, Ziauddin Medical University, Karachi – Pakistan
2. Research Department, Ziauddin Medical University Karachi – Pakistan
3. Department of Pathology, Dow University of Health Sciences Karachi – Pakistan
 [Date Received: 21/11/2021; Date Revised:12/11/2022
Date Published: 31/03/2023]

Abstractaa download_button



Background: Colorectal carcinoma (CRC) is a primary cause of morbidity and mortality worldwide. Resistance to therapy contributes to poor patient prognosis. The aim of our study is to identify the key proteins and interaction networks implicated in CRC which may serve as possible therapeutic targets and help in overcoming therapy resistance.

Methods: The microarray dataset of 58 cases and 62 controls was used to identify Differentially Expressed Genes (DEGs).After constructing protein-protein interaction networks , Cytoscape analysis was done to identify the hub proteins. Based on sub graph centrality, between-ness and degree (≥10), hub proteins were selected for further literature search and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis.

Results: A total of 85 up-regulated genes and 95 down-regulated genes of CRC patients were selected based on criteria of P>0.05 and fold change>2.0. The PPI analysis revealed STAT3, HNRNPA2B1, RBM8A, RBM25, ATM, HIST1H2BK, SRSF5 and HNRNPDLas hub proteins. On the basis of criteria set for cytoscape analysis, STAT3 and HNRNPA2B1 were identified as key hub proteins. KEGG pathway analysis revealed vital role of STAT3 in carcinogenesis.

Conclusion: In addition of HNRNPA2B1 activation by STAT3, cross talk of STAT3 with other oncogenic signaling pathways signifies its role in colorectal carcinogenesis. Our study highlights thatSTAT3may be a possible therapeutic target which may help in overcoming the dilemma of resistance to drug treatment in advanced cases.

Keywords: STAT3, drug resistance, targeted therapy, bioinformatics

Introduction6th button-01

CRC denotes a primary cause of morbidity and mortality worldwide [1]. The World Health organization (WHO) data reports that out of 9.6 million cancer related deaths that occur globally, colorectal carcinoma (CRC) results in approximately 0.862 million deaths [2].  Bailey et al in 2015 documented that CRC risk will show an increase of about 90% in a decade [3,4]. Although CRC, if diagnosed at an early stage, is a curable disease it still remains the second most commonly reported cause of cancer related fatality [4]. The advancement of treatment modalities has achieved only a slight improvement in survival rate [5]. Mainstay of CRC treatment is surgery. If surgery fails to offer complete remission, target-based therapy, neoadjuvant radiotherapy and adjuvant chemotherapy is indicated. However, drug resistance remains one of the vital reasons for poor overall survival rate of CRC patients [5]. Patients experience treatment resistance and relapse of disease which may be attributed to plethora of molecular events defining complex pathogenesis of CRC [6,7]. Understanding of molecular events responsible for therapy resistance can open avenues for drug development and improved patient management [8].

It is imperative to explore possible molecular targets of colon cancer and to determine the molecular mechanisms associated with drug resistance. This will support the designing of novel strategies for successful treatment of patients with CRC [9,10]. Bioinformatics tools have gained popularity due to their use in collection, classification and analysis of biological datasets including the gene expression microarray datasets. The world has stepped towards precision medicine based on bioinformatics analysis for identifying the dynamic molecular events that determine disease pathogenesis [11]. Data mining of the available microarray datasets may act as a key source for understanding the molecular pathogenesis and for carrying out targeted experiments. Deeper understanding of genetic alterations in colorectal carcinoma and the functional consequences of these mutations can lead to improved therapeutic approach and better patient management.

Methods6th button-01

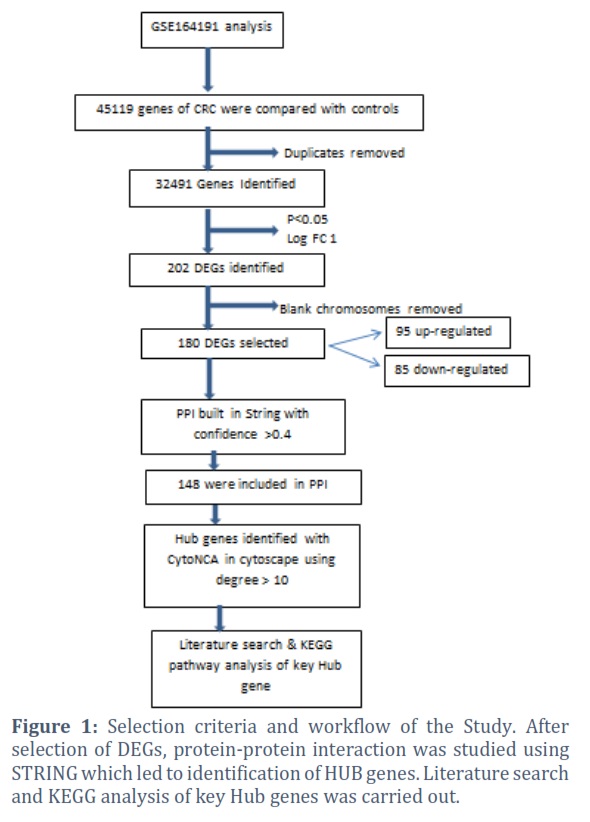

Ethical consideration: The study has been carried out after approval from Ethics Review Committee of Ziauddin University (2861120SHPAT).The study was conducted in Multidisciplinary Laboratory Ziauddin University(Figure 1). In our study the microarray dataset was obtained from Gene Expression Omnibus (GEO) database (

Identification of DEGs: We selected 121 samples, with 62 controls and 58 CRC case which were obtained from NCBI generated microarray dataset GSE164191. The identification of DEGs was done based upon p value to test the differential expression of the genes between the CRC and the control groups. The p value was calculated using the Student’s t-test. The cut‐off criteria were kept at the fold change>2.0 and a corrected p < 0.05.

PPI analysis: To perform the PPI analysis, online database Search Tool for the Retrieval of Interacting Genes was used. The parameter of interactions was set as confidence>0.4. To visualize and analyze the PPI network, Cytoscape software was used. The scattered proteins in cytoscape were removed from the final PPIs. The proteins, which worked like a hub in the network, were selected by CytoNCA on the basis of their interaction with other proteins. The selection was based upon degree centrality, between-ness centrality and sub graph centrality. The degree was set at ≥10 for further selection of hub proteins.

Literature search: Manual literature search was performed to explore the role of the selected hub proteins in CRC.

KEGG Pathway analysis: The selected hub proteins were searched for associated pathways in human cancers using KEGG pathway analysis.

Results6th button-01

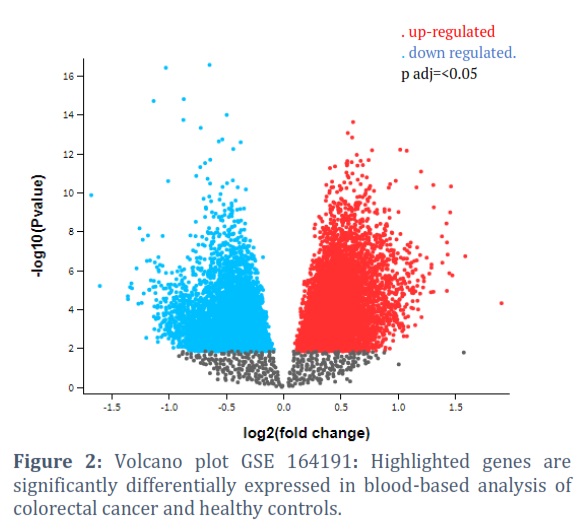

DEGS: There were 95 up-regulated genes and 85 down-regulated genes among the total of 180 DEGs which were selected according to the defined criteria (Figure 2; Supplementary Dataset S1).

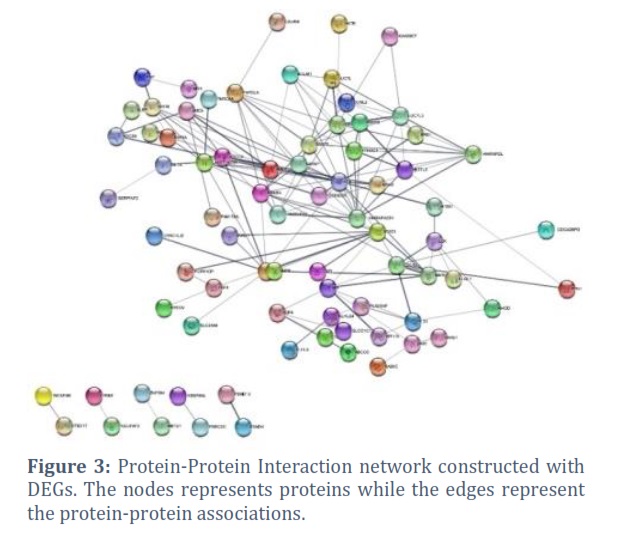

PPI network Analysis: After initial input of 180 selected DEGS , 148 DEGs with mean confidence score >0.4  were used to construct PPI (Figure 3).Identification of genes which were closely related with others was done using degree centrality, between-ness centrality and sub graph centrality ,and selected at degree ≥10 (Table1). This analysis highlightedSTAT3, HNRNPA2B1, RBM8A, RBM25,ATM,HIST1H2BK, SRSF5and HNRNPDL as key differentially expressed proteins.

Selection of HUB gene: Manual literature search was done on the top hub genes, STAT3 and HNRNPA2B1 to identify their role in CRC. Based on the results of CytoNCA analysis and literature search, STAT3 was chosen as hub protein. Literature showed a significant role of STAT3 in colorectal carcinogenesis as well as in associated therapy resistance.

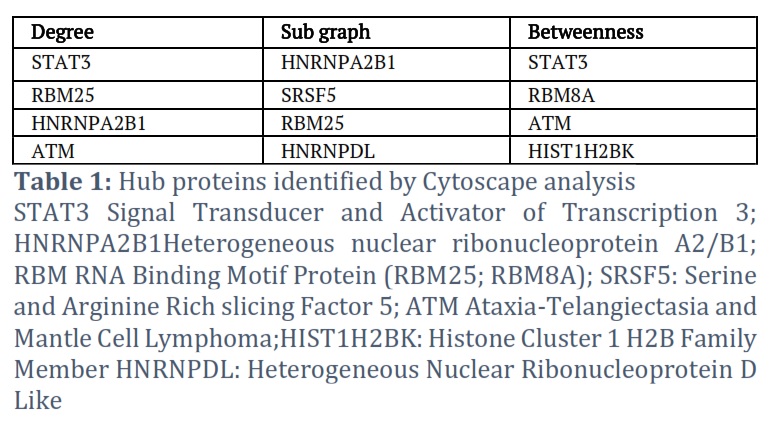

STAT3 Signal Transducer and Activator of Transcription 3; HNRNPA2B1Heterogeneous nuclear ribonucleoprotein A2/B1; RBM RNA Binding Motif Protein (RBM25; RBM8A); SRSF5: Serine and Arginine Rich slicing Factor 5; ATM Ataxia-Telangiectasia and Mantle Cell Lymphoma;HIST1H2BK: Histone Cluster 1 H2B Family Member HNRNPDL: Heterogeneous Nuclear Ribonucleoprotein D Like

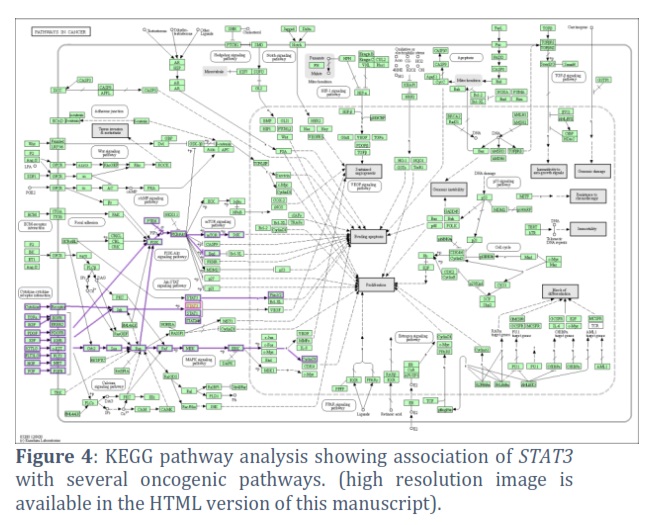

KEGG pathway analysis: KEGG pathway analysis of STAT3 in human cancers (map 05200) revealed pathways associated with STAT3 including cytokine receptor interactions, MAP kinase signaling pathway, PI3K/AKT signaling pathway and JAK-STAT pathway (Fig 4). KEGG pathway analysis did not reveal significant role of   HNRNPA2B1 in CRC.


Figures & Tables





6th button-01

In our study we aimed to find out vital protein interaction networks in colorectal cancer. The comparison of dataset between normal controls and colorectal cancer patients revealed 180DEGs in which 95 were up regulated and 85 were down-regulated. The DEGS were selected for PPI construction which led to identification of two key proteins, heterogeneous nuclear ribonucleoprotein A2/B1 (HNRNPA2B1) and Signal transducer and activator of transcription 3 (STAT3) based on sub graphcentrality, degree and betweenness.On exploring literature, we found association of these two proteins withcolorectal carcinogenesis. The primary role of HNRNPA2B1 has been documented in pathogenesis of amyotrophic lateral sclerosis [12,13]. Studies have reported thatHNRNPA2B1can promotingcolorectal tumour cell invasiveness [14]. It has been suggested that HNRNPA2B1facilitates tumor metastasis through extracellular regulated protein kinases (ERK) pathway [15]. Moreover, the expression and splicing of RAF kinase has been documented to be regulated by HNRNPA2B1 [16]. Moreover, the heterogeneous nuclear ribonucleoproteins (HNRNPs) have been reported to be associated with JAK STAT signaling pathway with up regulation of HNRNPs via STAT3 activation [17,18]. The STAT3 gene is a member of the STAT protein family which   regulates cellgrowth and proliferation [19]. Among the family of STAT proteins, STAT3 has been reported to be overexpressed in about 70% cancer[20]. KEGG pathway analysis highlights the association of STAT3 with human cancers.Activation of STAT3 may be due to phosphorylation signals by cytokines like IL6, activated Janus kinases (JAK), activated epidermal growth factor receptor (EGFR) or by mitogen activated pathway (MAP) kinases. Activated STAT3 can lead to increased transcription of target genes including cell-cycle regulator genes, proto-oncogenes, and anti-apoptotic genes. In this era of precision medicine,anti-EGFR drugs have gained popularity with EGFR being a possible therapeutic target in CRC patients especially in patients where surgery does not offer complete cure [21]. However, the development of resistance to EGFR-tyrosine kinase inhibitor drugs has narrowed their scope in CRC therapeutics [21]. Several kinases associated signalling pathways have beenimplicated as possible mediators of resistance to anti-EGFR targeted therapy [22,23] .Zulkifli et al documented upon the role of STAT3 signaling in providing tumour cells with an escape mechanism to inhibitory effects of anti-EGFR drugs [23]. Our search of KEGG pathways highlightsthe association of STAT3 activation with EGFR which indicates that STAT3 is an important protein contributing to stepwise accumulation of genetic events incolorectal Carcinogenesis. Hence anti EGR therapy resistance may be due to downstream activation of STAT3. Moreover, the role of STAT3 in CRC chemotherapy resistance has been studied by STAT3 inhibition which can sensitize colorectal cancer cells to 5-Florouracil therapy through down-regulating cyclinD1 [24]. This resistance may be attributed to STAT3 activation through cytokine receptor activation. The phosphorylation of cytokine receptors is triggered  by Janus kinase which leads to activation of cytokine receptor associated kinases namelyEGFR, fibroblast growth factor receptor (FGFR), platelet-derived growth factor receptor (PDGFR), and receptor-associated kinases that activate STAT3 [25]. JAK2 and STAT3 activation may play a significant role in promoting CRC metastasis [26]. Tsai et al. demonstrated that progression of colon cancer can be attributed to JAK2 and STAT3 activation by IL-6 [27]. Furthermore, the negative regulators of STAT3 like suppressors of cytokine signaling are believed to be perturbed in malignancy [28]. Studies have reported that STAT3 levels are higher in dedifferntiated colon cells and that there is a negative correlation between high levels of STAT3 and prognosis of CRC [4].

Clinical trials are ongoing to explore efficacious target therapy based on inhibiting STAT3. However STAT3 inhibitors have not been marketed as yet. Rational bioinformatics toolsalong with reliable assays are critical for attaining this aim. Because of the crosstalk of STAT3 and other oncogenic signaling pathways drug repurposing approach for chemotherapy may lead to better cancer management. Furthermore, the development of STAT3 inhibitors in combination with other therapies may help in formulating effective cancertreatment [29]. Our analysis highlightsSTAT3 as the hub gene which is associated with CRC. Theassociation of STAT3 with CRC related pathways highlights the need of further research on STAT3 as a possible therapeutic target. This may help in overcoming the treatment failure associated with drug therapy such as anti-EGFR therapy resistance.

Author Contributions

Sobia Hassan: conceptualization ,data acquisition,  manuscript writing and editing, correspondence
Talat Mirza: designing the study, editing, revising and final manuscript approval
Ambrina Khatoon: data acquisition ,analysis and interpretation, manuscript writing
Uzma Bukhari: data analysis and interpretation, manuscript writing and editing

Fouzia Shaikh : manuscript writing and editing.

6th button-01

Conflict of Interest

The authors declare that there is no conflict of interest.

6th button-01


  1. Jiang D, Liao J, Duan H, Wu Q, Owen G, et al. A machine learning-based prognostic predictor for stage III colon cancer. Scientific reports, (2020); 10(1): 1-9.
  2. Bray F, Ferlay J, Soerjomataram I, Siegel RL, Torre LA, et al. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA: a cancer journal for clinicians, (2018); 68(6): 394-424.
  3. Bailey CE, Hu C-Y, You YN, Bednarski BK, Rodriguez-Bigas MA, et al. Increasing disparities in the age-related incidences of colon and rectal cancers in the United States, 1975-2010. JAMA surgery ,(2015); 150(1): 17-22.
  4. Chalikonda G, Lee H, Sheik A, Huh YSJM, Biochemistry C. Targeting key transcriptional factor STAT3 in colorectal cancer. Molecular and Cellular Biochemistry, (2021); 4763219-3228.
  5. Xie Y-H, Chen Y-X, Fang J-YJSt, therapy t. Comprehensive review of targeted therapy for colorectal cancer. Signal transduction and targeted therapy ,(2020); 5(1): 22.
  6. Hervieu C, Christou N, Battu S, Mathonnet MJC. The role of cancer stem cells in colorectal cancer: from the basics to novel clinical trials. Cancers , (2021); 13(5): 1092.
  7. McCuaig S, Barras D, Mann EH, Friedrich M, Bullers SJ, et al. The Interleukin 22 Pathway Interacts with Mutant KRAS to Promote Poor Prognosis in Colon CancerIL22 Pathway and Mutant KRAS Promote Poor Prognosis in Colorectal Cancer. Clinical Cancer Research,  (2020); 26(16): 4313-4325.
  8. Van der Jeught K, Xu H-C, Li Y-J, Lu X-B, Ji GJWjog. Drug resistance and new therapies in colorectal cancer. World journal of gastroenterology, (2018); 24(34): 3834.
  9. Das PK, Islam F, Lam AKJC. The roles of cancer stem cells and therapy resistance in colorectal carcinoma. Cells, (2020); 9(6): 1392.
  10. Zhang L, Jiang B, Zhu N, Tao M, Jun Y, et al. Mitotic checkpoint kinase Mps1/TTK predicts prognosis of colon cancer patients and regulates tumor proliferation and differentiation via PKCα/ERK1/2 and PI3K/Akt pathway. Medical Oncology, (2020); 371-10.
  11. Jia L, Fu W, Jia R, Wu L, Li X, et al. Identification of potential key protein interaction networks of BK virus nephropathy in patients receiving kidney transplantation. Scientific reports (2018); 8(1): 5017.
  12. Fifita JA, Zhang KY, Galper J, Williams KL, McCann EP, et al. Genetic and pathological assessment of hnRNPA1, hnRNPA2/B1, and hnRNPA3 in familial and sporadic amyotrophic lateral sclerosis. Neurodegenerative Diseases, (2017); 17(6): 304-312.
  13. Xue YC, Ng CS, Xiang P, Liu H, Zhang K, et al. Dysregulation of RNA-binding proteins in amyotrophic lateral sclerosis. Frontiers in molecular neuroscience, (2020); 1378.
  14. Zhang Y, Huang W, Yuan Y, Li J, Wu J, et al. Long non-coding RNA H19 promotes colorectal cancer metastasis via binding to hnRNPA2B1. Journal of Experimental & Clinical Cancer Research., (2020); 39(1): 1-15.
  15. Dai S, Zhang J, Huang S, Lou B, Fang B, et al. HNRNPA2B1 regulates the epithelial–mesenchymal transition in pancreatic cancer cells through the ERK/snail signalling pathway. Cancer cell international ,(2017); 17(1): 1-13.
  16. Hu Y, Sun Z, Deng J, Hu B, Yan W, et al. Splicing factor hnRNPA2B1 contributes to tumorigenic potential of breast cancer cells through STAT3 and ERK1/2 signaling pathway. Tumor Biology, (2017); 39(3): 1010428317694318.
  17. Li H, Liu J, Shen S, Dai D, Cheng S, et al. Pan‐cancer analysis of alternative splicing regulator heterogeneous nuclear ribonucleoproteins (hnRNPs) family and their prognostic potential. Journal of cellular and molecular medicine, (2020); 24(19): 11111-11119.
  18. Yao A, Xiang Y, Si YR, Fan LJ, Li JP, et al. PKM2 promotes glucose metabolism through a let‐7a‐5p/Stat3/hnRNP‐A1 regulatory feedback loop in breast cancer cells. Journal of cellular biochemistry, (2019); 120(4): 6542-6554.
  19. Yang Y, Wang G, He J, Ren S, Wu F, et al. Gender differences in colorectal cancer survival: a meta‐analysis. International journal of cancer,  (2017); 141(10): 1942-1949.
  20. Wei N, Li J, Fang C, Chang J, Xirou V, et al. Targeting colon cancer with the novel STAT3 inhibitor bruceantinol. Oncogene, (2019); 38(10): 1676-1687.
  21. Zhuang Y, Bai Y, Hu Y, Guo Y, Xu L, et al. Rhein sensitizes human colorectal cancer cells to EGFR inhibitors by inhibiting STAT3 pathway OncoTargets and therapy,. (2019); 5281-5291.
  22. Jin J, Guo Q, Xie J, Jin D, Zhu YJP, et al. Combination of MEK inhibitor and the JAK2-STAT3 pathway inhibition for the therapy of colon cancer. Pathology & Oncology Research (2019); 25769-775.
  23. Zulkifli AA, Tan FH, Putoczki TL, Stylli SS, Luwor RBJM, et al. STAT3 signaling mediates tumour resistance to EGFR targeted therapeutics. Molecular and cellular endocrinology, (2017); 45115-23.
  24. Mohassab AM, Hassan HA, Abdelhamid D, Abdel-Aziz MJPR. STAT3 transcription factor as target for anti-cancer therapy. Pharmacological Reports, (2020); 721101-1124.
  25. Park S-Y, Lee C-J, Choi J-H, Kim J-H, Kim J-W, et al. The JAK2/STAT3/CCND2 Axis promotes colorectal Cancer stem cell persistence and radioresistance. Journal of Experimental & Clinical Cancer Research, (2019); 38(1): 1-18.
  26. Zhang X, Hu F, Li G, Li G, Yang X, et al. Human colorectal cancer-derived mesenchymal stem cells promote colorectal cancer progression through IL-6/JAK2/STAT3 signaling. Cell death & disease, (2018); 9(2): 25.
  27. Tsai KS, Yang SH, Lei YP, Tsai CC, Chen HW, et al. Mesenchymal stem cells promote formation of colorectal tumors in mice. Gastroenterology, (2011); 141(3): 1046-1056.
  28. Wong AL, Hirpara JL, Pervaiz S, Eu J-Q, Sethi G, et al. Do STAT3 inhibitors have potential in the future for cancer therapy? Expert opinion on investigational drugs, (2017); 26(8): 883-887.
  29. Dong J, Cheng X-D, Zhang W-D, Qin J-JJJoMC. Recent update on development of small-molecule STAT3 inhibitors for cancer therapy: from phosphorylation inhibition to protein degradation. Journal of Medicinal Chemistry, (2021); 64(13): 8884-8915.
