Decreased Expression of Alpha Smooth Muscle Actin and Desmin Contributes to the Protection of Vitamin D3 against Diclofenac Induced Nephrotoxicity in Rats

Full Length Research Article

Decreased Expression of Alpha Smooth Muscle Actin and Desmin Contributes to the Protection of Vitamin D3 against Diclofenac Induced Nephrotoxicity in Rats

Sahar Youssef *1,2, Marwa Salah3

Adv. life sci., vol. 8, no. 1, pp. 78-84, November 2020
*Corresponding Author: Sahar Youssef (Email:
Authors' Affiliations

 1. Anatomy Department, Faculty of Medicine for Girls, Al-Azhar University, Cairo – Egypt
2. Department of Anatomy, College of Medicine, Taif University, Taif – Saudi Arabia
3. Zoology Department, Faculty of Science, Beni-Suef University, Beni-Suef - Egypt
 [Date Received: 30/03/2020; Date Revised: 23/08/2020; Date Published Online: 25/11/2020]

Abstractaa download_button



Background: Diclofenac is widely prescribed for its analgesic and anti-inflammatory actions but it also has some harmful effects on the kidney. The current study was conducted to elucidate the possible mechanism of action of diclofenac sodium on kidney, and if it is affected by the addition of vitamin D.

Methods: Rats were divided into 4 equal groups. G1 was the control group that received no treatment; G2 was treated with intramuscular injection of vitamin D (1,000 IU/kg, 3days/week); G3 was treated with intramuscular injection of diclofenac sodium (3.6 mg/kg, 3 days/week) and G4 treated simultaneously with both diclofenac (3.6 mg/kg, 3 days/week) and vitamin D (1,000 IU/kg, 3days/week) intramuscularly for four weeks. Kidneys sections were stained with H&E, Masson’s trichrome and immunohistochemical staining against α –SMA and desmin followed by the morphometric and statistical analysis.

Results: Kidney sections from diclofenac sodium treated group showed degeneration and necrosis, small or atrophic glomeruli with dilated Bowman’s space and some of the renal tubular lining cells appeared vacuolated with small pyknotic nuclei. Renal fibrosis was confirmed by significant increase in collagen fibers, α –SMA and podocytes injury by significant increase of desmin.  However, in diclofenac- vitamin D treated group significantly the expression of α –SMA and desmin were decreased.

Conclusion: The current data suggested that vitamin D might play a protectant role against diclofenac induced kidney injury in rats through the preservation of the histological architecture of renal corpuscles, renal cortical tubules and down regulation of collagen, α – SMA and desmin.

Keywords: α-SMA; Desmin; Diclofenac Sodium; Vitamin D

Introduction6th button-01

Kidney is one of the most important organs in the human body. Kidney involved in removing of drugs or toxic substances, regulates blood pressure, acid base balance, electrolytes and maintaining the production of prostaglandins via cyclooxygenase (COX).  Kidney injuries often arise due to their function involvement in storage, detoxification and excretion.  Certain prescriptions such as non-steroidal anti-inflammatory drugs (NSAIDs) are widely used to control pain and fever, however, nephrotoxicity are recognized on their repeated and high dosage. Diclofenac sodium is a phenyl acetic acid NSAIDs broadly used as an antipyretic, analgesic, anti-rheumatic and anti-inflammatory [1]. It is prescribed for treatment of osteoarthritis, myalgia and rheumatic disorders by suppressing the synthesis of prostaglandin by inhibiting COX enzymes activity [2].  Although normal therapeutic usage of diclofenac exhibited beneficial effects but adversarial side possessions has been reported such as liver injury, gastrointestinal diseases, hematotoxicity and acute kidney injury [3]. The exact mechanism of nephrotoxicity by diclofenac administration is not fully known, there is evidence suggested that diclofenac can cause inhibition of prostaglandin synthesis leads to irregular renal function and the deterioration in glomerular hydraulic pressure. Diclofenac can cause mitochondrial injury by stimulated oxidative stress and disturbing kidney mitochondrial complex I, leading to a decline of ATP production [4].  Also, diclofenac effects were shown to be associated with increased collagen content in mice [5].    So, the potential antioxidant therapeutic drugs that might prevent oxidative stress mediated cellular injury can be the protectant approach against harms affecting renal glomerular and tubular function.

Antioxidants play a vital role in protecting the body from toxic substances. Vitamin D is a fat soluble vitamin produced in the skin, kidney, liver, and can be absorbed from food. It is known to have wide range functions such as regulation of calcium and phosphorus metabolism, regulation of renal, cardiovascular functions and modulation of immune reactions [6].  Vitamin D has an antioxidant and anti- apoptotic action [7].  It has been linked with regulation of fibrosis or has been recommended for treating of fibrosis in several organs. For instance, vitamin D prevents bleomycin induced pulmonary fibrosis in mouse model [8]. Also, supplementation of vitamin D decreased hepatic fibrosis associated with hepatitis C [9].  However, the roles of vitamin D in the treatment and pathogenesis of kidney linked to NSAIDs are largely unknown.

The aim of current study was to examine  the effect of diclofenac  administration on the kidney of male albino rat and if these results were affected by the concomitant administration of vitamin D using histological and immunohistochemical analyses of α-SMA and desmin.

Methods6th button-01


Diclofenac sodium (Voltaren 75 mg/ 3 ml) ampoules produced by (Novartis Pharma Co. Cairo, Egypt). Vitamin D3 was in the form of ampoules; Devarol-S 200,000 I.U.; (Cholecalciferol) manufactured by (Memphis Co. for Pharm. & Chem. Ind., Cairo, Egypt).


Forty adult male Wistar rats weighing 180-200g were controlled and carried out according to the Animal Ethical Committee of Faculty of Medicine, Assiut University, Egypt.  Rats remained acclimatized for one week before the beginning of the experiment and housed in special cages under standard laboratory circumstances at an appropriate humidity room and temperature (23±1°) with 12-h light/dark cycles. Ordinary rat pellet and water ad libitum were supplied.

Experimental Design

In the current study, male rats were used instead of female because females might have a greater variability due to the alteration of hormonal changing in the oestrous cycles affecting the physiological and pharmacological characteristics. Rats were divided into four equal groups (n=10 per group) including the control group (G1) in which rats kept without treatment, vitamin D treated group (G2) in which rats were intramuscular injected with vitamin D3 diluted with saline at dose (1000 IU/Kg/day; 3 days/week) [10],  for four weeks. Diclofenac treated group (G3) in which rats received intramuscular injection of diclofenac sodium at a dose of 3.6 mg/kg, [11], 3days/week for four weeks and diclofenac – vitamin D treated group (G4) in which rats were given diclofenac sodium (3.6 mg/kg) and vitamin D (1000 IU/kg/day) simultaneously 3 days/week for four weeks.

Histological Analysis

At the end of experiment, rats from different studied groups were dissected. Kidney tissue samples from each rat were cut longitudinally and renal specimens were collected and fixed in 10 % neutral buffered formalin solution. Dehydration was performed in ascending grades of the ethanol and embedding in paraffin and processed for sections of 5 μm thickness. These sections were stained with hematoxylin and eosin (H&E) to study general histological structure and Masson’s trichrome to detect collagen fibers [12].

Immunohistochemical Analysis

Immunohistochemical staining for α–SMA and Desmin, was carried out using the technique according to the previously literature methods [13, 14]. Sections were cut into 3μm thickness, after deparaffinization and rehydration; methanol treatment including 0.03 % hydrogen peroxide for 20 min was used.  Kidney sections were incubated with normal serum for 20 min to block non-specific antibody, then incubated with anti-mouse monoclonal primary antibody against- α-SMA (1:100, DAKO, Denmark) [8], followed by  the secondary antibody anti-mouse IgG (1:500, Sigma-Aldrich). Other sets of sections were incubated with anti-mouse monoclonal primary antibody against desmin (1:100, DAKO, Denmark) [15]. The secondary antibody, peroxidase anti-mouse IgG (1:100, DAKO, Denmark) was performed.  Reaction was visualized by using the chromogen Diaminobenzidine, DAB (Dako, Glostrup, Denmark). Slides were counterstained with Mayer’s hematoxylin and finally dehydrated, rendered transparent with xylene and cover slipped. The negative control was performed by neglecting the primary antibody. Slides were analyzed under a light microscope to identify areas with brownish color which considered as sign of a positive reaction. Photography was conducted at the Mycology and Biotechnology Unit, Al-Azhar University, Cairo, Egypt.

Morphometric Analysis

The mean area percentage of Masson’s trichrome histochemical stain, desmin and α-SMA immunoreactivity using (Leica Qwin 500 image system, Cambridge, England) was carried out for image analysis. The measurements were conducted in 10 non-overlapping fields in stained slides chosen from each animal in all groups at a magnification of×400.

Statistical Analysis

The results were analyzed using one way analysis of variance (ANOVA), followed by the Tukey’s post-hoc test. All values are presented as the mean (M) ± standard deviation (SD).  Differences between the groups were considered significant when the probability of chance (p) is less than 0.05 (p < 0.05). All the data collected from the experiment was calculated and analyzed using SPSS software version 16 (SPSS, Chicago, USA).

Results6th button-01

Histological Results

H&E Results

The renal cortex of the control group (G1) stained with H&E showed normal architecture of renal corpuscles. The renal corpuscle consists of glomerular capillaries and Bowman’s capsule and the two layers of Bowman’s capsules could be observed.  The outer parietal layer consists of simple squamous epithelium, the inner visceral layer formed of podocytes and the two layers were separated by a urinary space (Fig.1a).  Numerous proximal convoluted tubules with narrow lumina were lined with simple cubical cells with basal spherical nuclei and deeply acidophilic cytoplasm. The distal convoluted tubules with wide lumina were lined with simple cubical cells, apical spherical or central nuclei and pale acidophilic cytoplasm (Fig.1a).

The histological architecture of the renal cortex of the vitamin D treated group (G2) was similar to that of control rats (Fig.1b). The renal cortex of the diclofenac group (G3) showed some small glomeruli or atrophic glomeruli with a widening of Bowman’s space. Some of the renal tubular lining cells appeared with vacuolated cytoplasm and small pyknotic nuclei (Fig.1 c). Sections from Diclofenac-vitamin D treated group (G4) revealed apparently normal glomeruli that were surrounded with Bowman's space. Most of the renal tubules appeared nearly normal however few tubules appeared dilated (Fig.1 d).

Masson’s Trichrome Results

Examination of the renal cortical sections of the control (G1) and vitamin D (G2) groups after Masson’s trichrome stain, showed the presence of a minimal amount of collagen which appeared as fine fibrous tissue among glomerular capillaries and around blood vessels (Fig. 2 a; b). Renal cortical sections from diclofenac group (G3) revealed marked deposition of collagen fibers within the glomeruli in the renal corpuscles and around the dilated blood vessels (Fig.2 c). However, renal cortical sections from diclofenac – vitamin D group (G4) showed mild deposition of fibrous tissue in the renal corpuscles and around blood vessels (Fig.2 d).

Immunohistochemical Results

Expression of α-SMA

Examination of rat’s cortical sections from the control (G1) and vitamin D (G2) groups showed positive α-SMA immunostaining localized to the wall of blood vessels and very negligible expression in the renal glomeruli can be seen (Fig.3 a, b).  Immunoexpression in the cortical sections of the diclofenac treated group (G3) appeared with strong positive reaction of α -SMA in the glomeruli, blood vessels (Fig.3 c) and in some of renal tubules (Fig.3d) as compared to that of the control group. Sections from diclofenac- vitamin D (G4) treated rats displayed a moderate reaction of α -SMA localized to the wall of blood vessels and minimal expression in the glomeruli (Fig.3e) as compared to rats received diclofenac only.

Expression of   Desmin

Renal cortical sections from the control (G1) and vitamin D (G2) groups were nearly similar and showed slight desmin positive immunoreactivity localized in the renal glomerular cells, however, negative desmin expression in the interstitium can be observed (Fig.4 a; b). Desmin immunostaining became abundant in sections of diclofenac treated group (G3) in the renal glomerular cells (Fig.4c). On the other hand; diclofenac and vitamin D group (G4) exhibited moderate desmin immunoreactivity in the renal glomerular cells (Fig.4d).

Morphometric Results

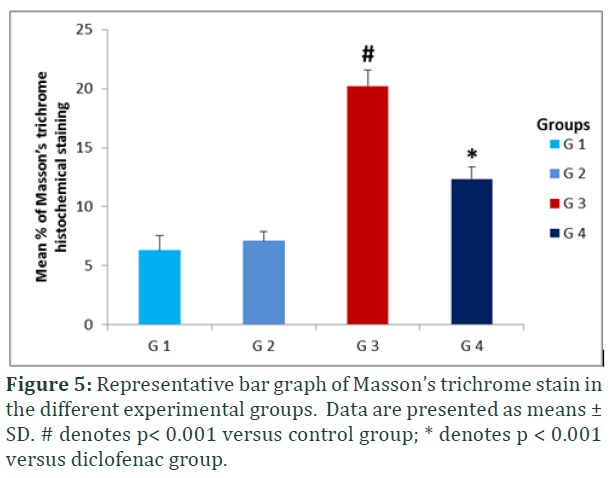

Regarding the morphometric data of the mean area percentage of collagen fibers, there was a significant increase of collagen fiber deposition (P < 0.001) in the diclofenac group (G3), (20.2±1.3) as compared to the control (G1); (6.3±1.2) and the vitamin D group (G2); (7.1±0.8). On the other hand, there was a significant (p ˂0.001) decrease of collagen fiber accumulation in the diclofenac-vitamin D group (G4), (12.4±0.99); as compared to the diclofenac group (Fig.5). Morphometric results of the area percentage of α-SMA from diclofenac treated group (G3) showed a significant increase (p ˂0.001) in both the glomeruli and the interstitium (21.22±1.4; 13.56. ±1.5 respectively) versus the control (G1) and vitamin D (G2) groups (5.64±0.7; 5.72±0.5); (4.45±1.5; 4.57±0.3 respectively). Co-administration of vitamin D with diclofenac (G4) revealed a significant (p ˂0.001) decrease in the area percentage of positive α-SMA immunostaining in the glomeruli and in the interstitium (7.23±0.9; 6.35±0.9 respectively) as compared to the diclofenac group (Fig.6).

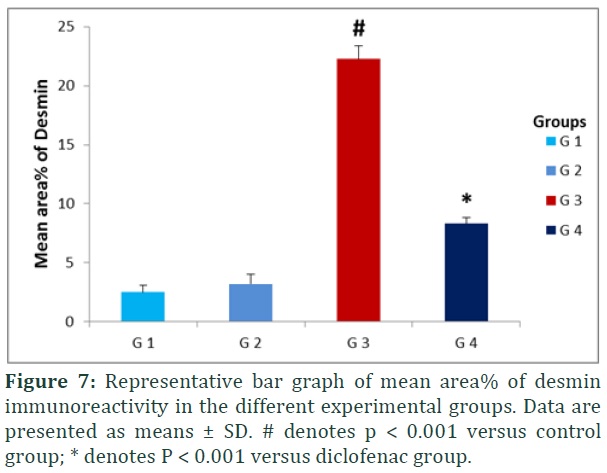

Statistical analysis of the morphometric findings of desmin immunostaining in the renal cortex showed a significant (p ˂0.001) increase in the area percentage of desmin in the diclofenac treated group (G3); (22.3±1.1) as compared to the control (G1) (2.5±0.6); and the vitamin D groups (G2); (3.2±0.8). While, vitamin D – diclofenac group (G4) manifested a significant (p ˂0.001) decrease (8.3±0.5) in the area percentage of the desmin as compared to the diclofenac group (Fig.7).


Figures & Tables












Discussion6th button-01

The present study adds new data regarding the possible defensive effect of vitamin D against diclofenac sodium induced renal injury in rats. Atrophic glomeruli with a widening of Bowman’s space in the diclofenac group in the present study were clearly observed. Atrophy of the glomeruli was observed after diclofenac administration from other studies [16- 18].

The current study revealed tubular dilatation and vacuolated cytoplasm of the lining epithelium of the renal tubules in the diclofenac treated rats.  This is in agreement with other investigations. In humans, patient presented with acute tubular damage used diclofenac treatment for knee arthropathy and chronic muscular pain [19].  Similar alterations have been reported by several authors in diclofenac [20], and from other drug such as atorvastatin [21].  The cytoplasmic vacuolation of the renal tubules observed in the current study could be due to increased fluid up take as a consequence of oxidative stress induced cell membrane injury [22].  Notably, pyknotic nuclei in the cells lining of the renal cortical tubules in the current study could be described as a pattern of nuclear alterations triggered by a non-specific interruption of DNA, leading to the irreversible condensation of chromatin into a solid basophilic mass in the cells undergoing necrosis and or apoptosis [23].

In the present study, marked deposition of collagen within the glomeruli and around the dilated blood vessels in the diclofenac group and supported by a morphometric analysis, where the mean area percentage of collagen fibers was significantly higher than the control. Crucially, fibroblasts initiate mainly inside the interstitial tissue through epithelial mesenchymal transition procedure. Then, tubular epithelial cells changed to a mesenchymal phenotype started by disruption in the equilibrium of the cytokine concentrations.  Finally, fibroblasts increase their numbers and secreting large quantity of extracellular matrix and disrupt normal interstitial structure of the kidney due to chronic inflammation of renal parenchyma. Numerous studies hypothesized that in renal fibrosis, more than thirty percentage of all disease related in which fibroblastic proliferation resulted in tubulointerstitial nephritis and finally irreversible renal failure [24].   Other studies confirmed that an increase in the connective tissue in the rat kidneys of the diclofenac treated group [11, 25].   The injured tubule cells promote inflammation, lead to the elimination of all tubular remnants and eventually formation of area of fibrosis. Some authors reported that degenerating tubule surrounded by inflammatory process consists of the enormous accumulation of myofibroblasts that form the interstitial fibrosis by producing type I collagen [26, 27].

The present study have been shown a significant increase in α- SMA immunoreactivity in diclofenac sodium treated group and confirmed by morphometric study. Importantly, α-SMA actin expression is used as a key index of mesangial cell activation [28].   Mesangial cells play a significant role in glomerular injury and have a vital impact to the extracellular matrix production and glomerulosclerosis [29].  α- SMA is greatly expressed in kidneys and recognizes smooth muscle cells and myofibroblasts.  Interestingly, the overproduction of α- SMA partly results from tubular epithelial-myofibroblast transdifferentiation, which act as an essential role in renal interstitial fibrosis [30].

Desmin is an intermediate filament protein and act as an indicator of podocyte injury. The podocytes are crucial for the glomerular filtration barriers that are damaged at an early stage of glomerular injury. The current study supports the hypothesis of renal injury in the diclofenac sodium group came from the strong desmin positive immunoreactivity within the cytoplasm and the processes of the podocytes. Increased desmin immunoreactivity was further supported by the significant increase in its mean area percentage as compared to the control group. Indeed, desmin expression was increased in various glomerular diseases in which podocytes damage. This finding is in line with other studies [31,32] which mentioned that desmin glomerular expression is significantly upregulated in podocytes of diabetic nephropathy and in the nandrolone decanoate induced renal cortical damage [33].

Vitamin D Administration with diclofenac sodium ameliorated most of the histological changes in the current study. Diclofenac-vitamin D group have been shown nearly normal renal histological architectures and minimal changes. Masson’s trichrome-stained sections showed mild deposition of collagen fibers in renal corpuscles and around blood vessels. Statistically, the mean area percentage of collagen fibers was significantly lower when compared to the diclofenac group. These findings were in parallel and supported by Cohort study in patients with severe liver fibrosis and cirrhosis in which vitamin D alleviated the risk of hepatic decompensation and inflammation by reducing numerous inflammatory cytokines [34].  Many experimental studies suggested that vitamin D protects against lead induced renal and testicular injuries in rats and act as an anti-oxidant and anti-inflammatory [35].    Other authors have been stated that vitamin D improved the hepatorenal damage triggered by monosodium glutamate by decreasing the levels of Malondialdehyde (MDA), increasing antioxidants and inhibiting cell apoptosis in rats [36].

Decreased α-SMA immune reaction in the current work in Diclofenac-vitamin D group was detected. This finding is in accordance with in vitro study which suggested that active vitamin D3 suppressed the expression of α-SMA and inhibited the upregulation of fibronectin and collagen [37].

In the present study, decreased desmin positive immunostaining with a significant decrease in its mean area percentage in diclofenac-vitamin D group was observed. These results were in agreement with the earlier results [38], which suggested that the antioxidant lycopene modified podocyte foot process changes and had a protecting influence on podocytes and decrease desmin positive immunoreactivity in nandrolone–lycopene group.   .

The histological, and immunohistochemical findings obtained in the present study support the view that diclofenac sodium has damaging effects and causes a variety of the histological alterations in the renal cortex. Crucially, vitamin D protects against renal fibrosis by decreasing the collagen, α-SMA expression and podocyte injury by decreasing expression of desmin. Though, additional studies are needed to detect further molecular mechanisms.

Author Contributions

Sahar Youssef designed the paper and both Sahar Youssef and Marwa Salah contributed to methodology, investigation, formal analysis, software, original draft preparation, writing, review, editing, final proofreading corrections and funding. This research article received no external funding.

Conflict of Interest

All authors declare no conflicts of interest in this paper.

References6th button-01

  1. El-Maddawy Z, El-Ashmawy I. Hepato-Renal and Hematological Effects of Diclofenac Sodium in Rats. Global Journal of Pharmacology, (2013); 7 (2): 123-132.
  2. Pandey PK, Ajima MNO, Kumar K, Poojary, N, Kumar S. Evaluation of DNA Damage and Physiological Responses in Nile Tilapia, Oreochromis niloticus (Linnaeus, 1758) Exposed to Sub-Lethal Diclofenac (DCF). Aquatic Toxicology, (2017); 186: 205-214.
  3. Altman R, Bosch B, Brune K, Patrignani P, Young C. Advances in NSAID development: evolution of diclofenac products using pharmaceutical technology. Drugs, (2015); 75(8) pp. 859-877.
  4. Ng LE, Vincent AS, Halliwell B, Wong KP. Action of diclofenac on kidney mitochondria and cells, Biochemical and Biophysical Research Communications, (2006); 348(2): 494–500.
  5. Chouhan S, Sharma S. Renal damage: a possible role of diclofenac induced injury associated with altered acid phosphatase and collagen content in Balb/c mice. Proceedings of the National Conference on ‘Advances in Basic & Applied Sciences’. Asian Journal of Advanced Basic Sciences, (2014); 2(3): 116-124.
  6. Elbassuoni EA, Ragy MM, Ahmed SM. Evidence of the protective effect of l-arginine and vitamin D against monosodium glutamate-induced liver and kidney dysfunction in rats. Biomedicine and Pharmacotherapy, (2018); 108: 799–808.
  7.  Zhang Y, Deb DK, Kong J, Ning G, Wang Y, et al. Long-term therapeutic effect of vitamin D analog doxercalciferol on diabetic nephropathy: strong synergism with AT1 receptor an­tagonist. American Journal Physiology -Renal Physiology, (2009); 297(3): F791-F801.
  8. Zhang Z, Yu X, Fang X, Liang A, Yu Z, et al. Preventive effects of vitamin D treatment on bleomycin-induced pulmonary fibrosis. Scientific Reports, (2015); 5: 17638.
  9. Abu-Mouch S, Fireman Z, Jarchovsky J, Zeina AR, Assy N. Vitamin D supplementation improves sustained virologic response in chronic hepatitis C (genotype 1)-naive patients. World Journal of Gastroenterology, (2011); 17(47) 5184–5190.
  10. BaSalamah MA, Abdelghany AH, El-Boshy M, Ahmad J, Idris S and Refaat B: Vitamin D alleviates lead-induced renal and testicular injuries by immunomodulatory and antioxidant mechanisms in rats. Scientific Reports, (2018); 8 (4853): 1-13.
  11. Mustafa H, Alkan I, Deniz Ö, Altunkaynak Z, Annaç E et al. A Study on the Toxic Effect of Different Doses of Diclofenac Sodium on the Development of the Kidney in the Postnatal Period. International Journal of Morphology, (2019); 37 (3): 877-884.
  12. Bancroft JD, Layton C. The Hematoxylin and eosin, connective and mesenchymal tissues with their stains. In: Suvarna SK, Layton C and Bancroft JD, editors. Bancroft’s theory and practice of histological techniques. 7th edition. Churchill Livingstone: Philadelphia. 2013; 173- 212.
  13. Youssef S, Mohamed S B. Impact of Finasteride Administration on Neuroactive Steroid Levels to Induce Persistent Sexual Side Effects and Anxious/Depressive Disorders and the Possible Protective Effect of Vitamin E. International Research Journal of Applied and Basic Sciences, (2017); 11 (2): 200-220.
  14. Youssef S.  Light and Electron Microscopic Study of the Effect of Orlistat on the Liver of Adult Male Albino Rats and the Possible Protective Role of β-Carotene. Forensic Medicine and Anatomy Research, (2018); 6(2): 20-36.
  15. AbdEl-Moniem M, Mustafa HN, Megahed HA, Agaibyi MH, Hegazy G, et al. The ameliorative potential of Hyphaene thebaica on streptozotocin induced diabetic nephropathy. Folia Morphologica, (2015); 74(4):447-57.
  16. Hassan SA, Sabry DA, Hussein MA. Protective Effect of Cranberry Extracts against Oxidative Stress and DNA Damage Induced by Diclofenac Sodium in Kidney of Male Albino Rat. Chinese Medicine, (2017); 8: 113-131.
  17.  Siva T, Sivakumar G , Sankaran P K, Francis M, Gayathri T, et al.   Hepatorenal profile of diclofenac sodium in wistar rats. Drug Invention Today, (2019); 12 (9): 1908-19012.
  18. Fattori V, Borghi SM, Guazelli CFS, et al. Vinpocetine reduces diclofenac-induced acute kidney injury through inhibition of oxidative stress, apoptosis, cytokine production, and NF-κB activation in mice. Pharmacological Research, (2017); 120:10-22.
  19. Galesic K, Ljubanovic D, Bulimbasic S, Racic I. Minimal change disease and acute tubular necrosis caused by diclofenac. Nephrology (Carlton), (2008); 13: 187–88.
  20. Aycan IO, Elpek O, Akkaya B, Kıraç E, Tuzcu H, et al. Diclofenac induced gastrointestinal and renal toxicity is alleviated by thymoquinone treatment. Food and Chemical Toxicology, (2018); 118: 795–804.
  21. Youssef S, Salah M. Renal Cortical Structural Alterations in Atorvastatin treated Rats and the Possible Protective Mechanisms of L-Carnitine. Indian Journal of Pharmaceutical Sciences, (2019); 81(5):834-843.
  22. Emanuel R. Essential Pathology, third ed. Lippincot Williams & Wilkins, 2001; pp.1.
  23. Kumar V, Abbas AK, Aster JC. Robbins & Cotran. Pathologic Basis of Disease, ninth ed. Elsevier Saunders, Philadelphia (US), 2015; pp. 42.
  24. Pawlina W. Histology a text and atlas with correlated cell and molecular biology, 7th ed. Wolters Kluwer, Philadelphia, Baltimore, New York, London. 2016; pp 698 -699, pp 91- 94 and P.720.
  25. Khoshvakhti H, Yurt KK, Altunkaynak BZ, Turkmen AP, Elibol E, et al. Effects of melatonin on diclofenac sodium treated rat kidney: a stereological and histopathological study. Renal Failure, (2015); 37(8): 1379–1383.
  26. DePhillipo NN, Aman ZS, Kennedy MI, Begley JP, Moatshe G, et al. Efficacy of Vitamin C Supplementation on Collagen Synthesis and Oxidative Stress After Musculoskeletal Injuries: A Systematic Review. Orthopedic Journal of Sports Medicine, (2018); 6(10) 1-9.
  27. Baher W, Abo Zeid, A, Abd Al-Khalek H. The Possible Protective and Therapeutic Effects of Mesenchymal Stem Cells Compared to Vitamin C in Gentamicin Induced Acute Kidney Injury in Adult Rats. A Histological Study. Egyptian Journal of Histology, (2019); 42(4):738-796.
  28. Abdel-Hamid G. Effect of Red Grape Juice on Renal Glomeruli in Hypercholestremic Rats. Life Science Journal, (2014); 11(6):234-245.
  29. Xiao Q, Guan Y, Li C, Liu L, Zhao D, et al. Decreased expression of transforming growth factor-β1 and α-smooth muscle actin contributes to the protection of lotensin against chronic renal failure in rats. Renal Failure, (2018); 40(1): 583–589.
  30. Rastaldi MP. Epithelial-mesenchymal transition and its implications for the development of renal tubulointerstitial fibrosis. Journal of Nephrology, (2006); 19(4):407–412.
  31. Yousry MM, Farag EA,  Omar Al. Histological Study on the Potential Effect of Sildenafil on the Kidney and Testosterone Level in Experimentally Induced Diabetes in Male Rats. Journal of Cytology and Histololgy, (2016); 7 (4): 1-8.
  32. Gao F, He X, Liang S, Liu S, Liu H, He Q, Chen L, Jiang H, Zhang Y. Quercetin ameliorates podocyte injury via inhibition of oxidative stress and the TGF-b1/Smad pathway in DN rats. RSC Advances, (2018); 8 (62): 35413–35421.
  33. Shalaby A, El Shaer D. Lycopene protects against renal cortical damage induced by nandrolone decanoate in adult male rats. Annals of Anatomy, (2019); 224: 142–152.
  34. Kubesch A, Quenstedt L, Saleh M, Ruschenbaum S, Schwarzkopf K, Martinez Y, et al. Vitamin D deficiency is associated with hepatic decompensation and inflammation in patients with liver cirrhosis: a prospective cohort study. PLoS ONE, (2018); 13(11): e0207162.
  35. Almaimani RA, Almasmoum H, Ghaith MM, et al. Enhanced remedial effects for vitamin D3 and calcium co-supplementation against pre-existing lead nephrotoxicity in mice: the roles of renal calcium homeostatic molecules, Biochimica et Biophysica Acta – Molecular Basis of Disease, (2019); 1865)2): 512–524.
  36. Elbassuoni E, Ragy M, Ahmed S. Evidence of the protective effect of L-arginine and vitamin D against monosodium glutamate-induced liver and kidney dysfunction in rats. Biomedicine & Pharmacotherapy, (2018); 108: 799–808.
  37. Ramirez A M, Wongtrakool C, Welch T, Steinmeyer A, Zügel U, Roman J. Vitamin D inhibition of pro-fibrotic effects of transforming growth factor beta1 in lung fibroblasts and epithelial cells The Journal of Steroid Biochemistry and Molecular Biology, (2010); 118(3):142–150.
  38. El-Gerbed MS. Protective effect of lycopene on deltamethrin-induced histo-logical and ultrastructural changes in kidney tissue of rats. Toxicology and Industrial Health, (2014); 30(2): 160–173.
