Method/Design

Negative staining for viruses and bacteria

This technique involves the use of a drop of the organism culture, which is examined by placing it onto a carbon film-coated, 400 mesh copper grid that is held with self-locking fine forceps. After allowing the particles or cells to attach to the film for between one to three minutes, the droplet is dried using filter paper. The grid is then left alone for another minute. Next, a drop of methylamine tungstate is dropped onto the surface of the grid. After one minute, the stain droplet is wicked to dry again with filter paper. Finally, the grid is placed in a filter paper-lined petri dish until it can be observed using TEM [6,7].

Negative staining for powdered (particulate) samples

This technique involves the preparation of a particulate suspension using solvents like water, ethanol, acetone, or isopropyl alcohol. A drop of the prepared suspension is subsequently transferred onto a carbon film-coated, 400 mesh copper grid and allowed to be adsorbed for one to three minutes. Ideally, the drop should be pipetted out after the larger particles in the suspension have been sedimented to the bottom of the sample tube. The timing for adsorption to the film is dependent on the thickness of the suspension, thus it varies with specimens. After one minute, the stain droplet is dried using filter paper. Subsequently, the grid is placed in a filter paper-lined petri dish until further electron microscopic examination [6,7].

Figures & Tables

Principle of Negative Staining in Microscopy

The negative staining technique involves the use of an acidic stain, for example, methylamine tungstate, uranyl acetate, phosphotungstic acid, or phosphomolybdic acid. Generally, an acidic stain readily donates a hydrogen ion (proton) resulting in the chromophore of the dye becoming negatively charged. As the cell surface of the majority of bacterial cells is negatively charged, therefore, it would repel and block the penetration of the negatively charged chromogen of the acidic stain. This results in the unstained bacterial cells being easily distinguished against the colored or darker background [6,7].

The practical application of this technique in microscopy has several benefits. Firstly, the stain helps to preserve the natural size and shape of the examined bacteria, as heat fixation is not required in this technique; resulting in minimal distortion effects caused by heat and chemicals. Secondly, it is particularly advantageous for the successful identification of bacteria that are difficult to stain, such as Spirilla. On the contrary, as heat fixation is not performed during the staining process, the organisms are still viable, therefore, the laboratorian must practice caution and take necessary safety measures when handling the slides [6,7].

This technique involves the direct examination of the particulate or colloidal components using a specimen support grid specifically designed for Transmission Electron Microscope (TEM) after the cells have been embedded in an electron-dense ‘stain’. Besides, it relies on the production of an outline of the cell structure by the metallic stain, rather than reacting positively with the cell, thus, an overall detail on the size, shape, and flagella structure of the bacteria can be obtained. As the negative-staining electron microscopy technique is also quick and easier to conduct, the results of the analysis will be available within several minutes. Therefore, it is considered to be the most useful approach in electron microscopy technique, particularly, in terms of the number of samplesthat can be diagnosed. Further, in this technique, the particles of a suspension which are adsorbed onto the surface of the specimen support, are stabilized and contrasted with heavy metal stains, thus, enabling the visualization and categorization of the morphology of the cells at sub-nanometre size [6,7].

Additionally, due to the user-friendliness and relatively high throughput of this staining technique, it is routinely applied for quality assurance in microscopy techniques, for example, in examining virus cultures. This method allows the transfer of numerous virus particles into a suspension to preserve the morphological structure of the virus which is usually damaged by techniques such as freeze-thawing or by grinding in a potter. Moreover, the efficacy of sample preparation speed is also a vital criterion in diagnostic electron microscopy. Thus, it is inevitable to state that the combination of the negative-staining technique with electron microscopy examination serves as a first-line method in this field [8].

Concerning the microscopic techniques used, the ‘open view’ of electron microscopy offers first-hand information on all of the nanoparticles found in a sample. For example, virus particles are recognized based on various morphological characteristics, such as shape, size, surface structure, and other distinct features, for instance, the presence of appendages. Most often, the diagnosis from the identification process only leads to a systematic group of organisms rather than to a specific virus. However, as the structural characteristics of a virus are relatively constant during its development, identification and diagnosis are still made possible by this technique compared to other methods. This is possible even in the worst-case scenario when the nucleic acids have been significantly altered by mutation. Additionally, in other fields such as plant pathology and veterinary, the role of diagnostic electron microscopy is more crucial, as there is a lack of availability of other diagnostic tools [9].

In terms of its practical approach, negative staining uses a whole-mount preparation method which enables all the structural characteristics of the specimen of interest to be observed as a two-dimensional projection. Further, to examine the structure of bacteria in a more detailed and comprehensive manner, especially in the cellular context, ultrathin sections must be prepared. Most often, thicker samples are subjected to ultrathin sectioning, though the sample thickness is restricted to 200–300 nm, depending mainly on the density. With this, additional information can be obtained through a two-dimensional reconstruction of the negatively stained virus preparation. Currently, the advancement in microscopy techniques, such as the introduction of the immunolabeling technique allows researchers to combine structural details along with molecular information by incorporating immunolabeling with the negative staining technique. This immuno-negative staining method can contribute to a higher diagnostic specificity besides improving one’s apprehension of the molecular topography of viruses [10-12].

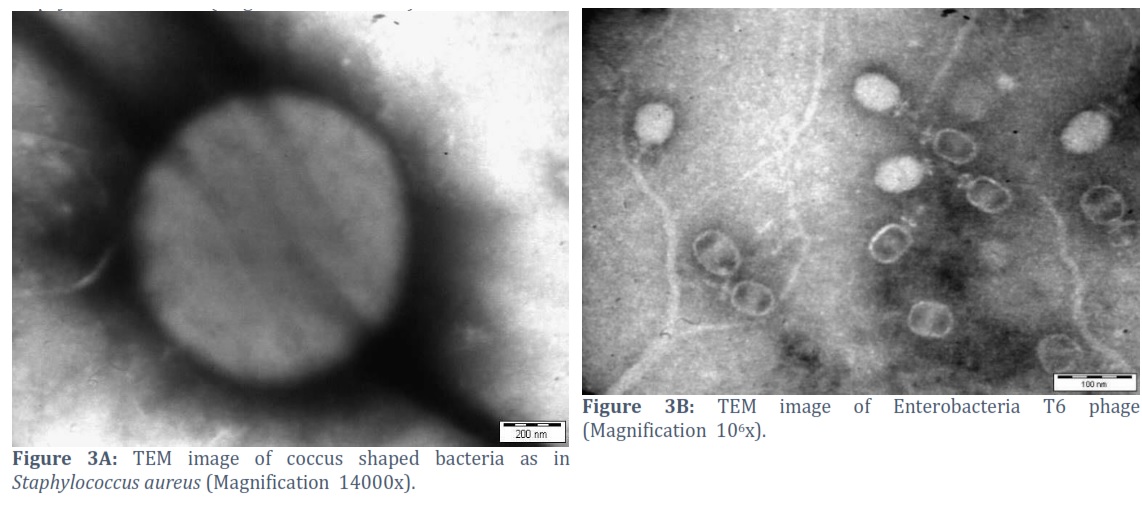

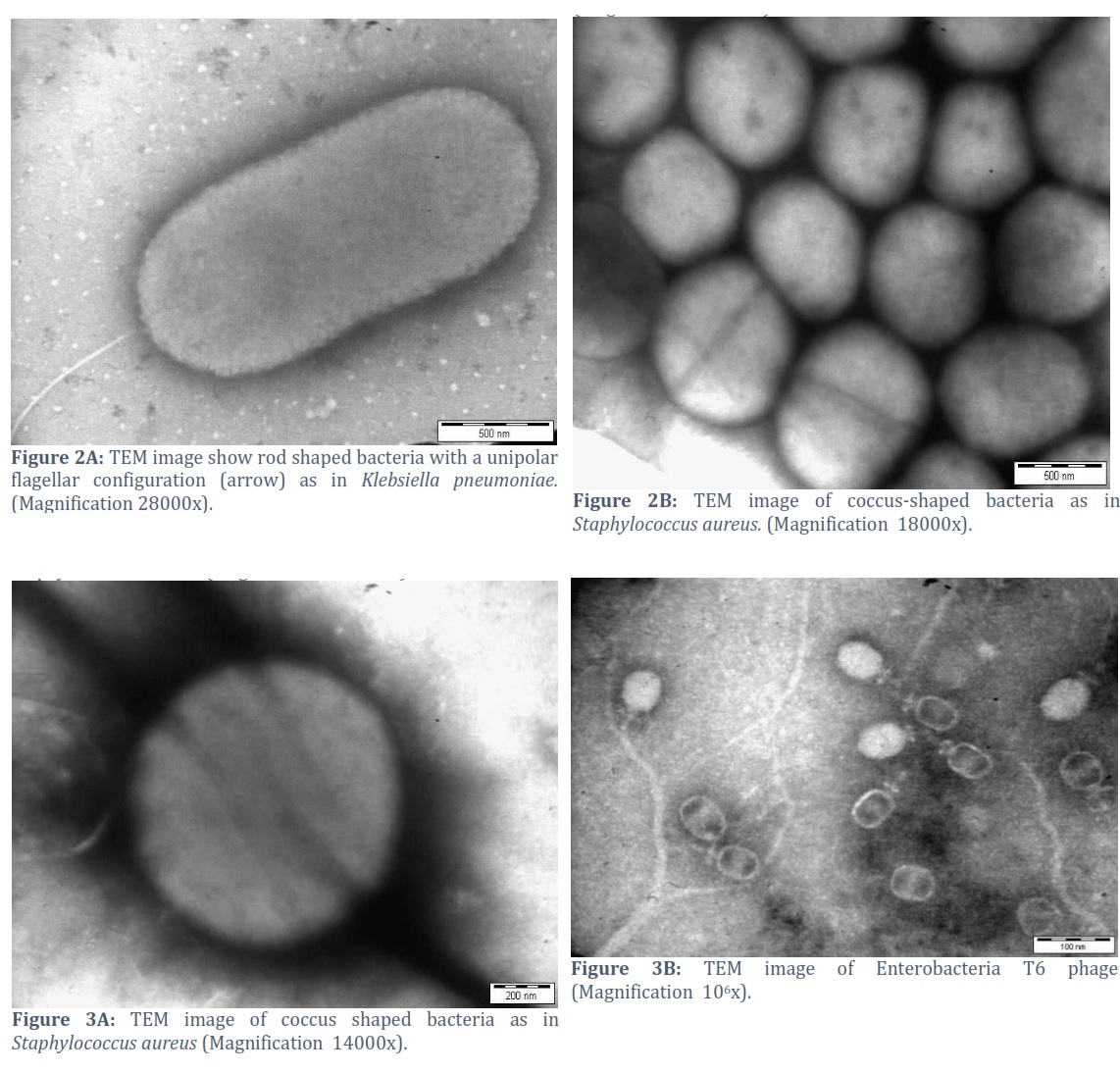

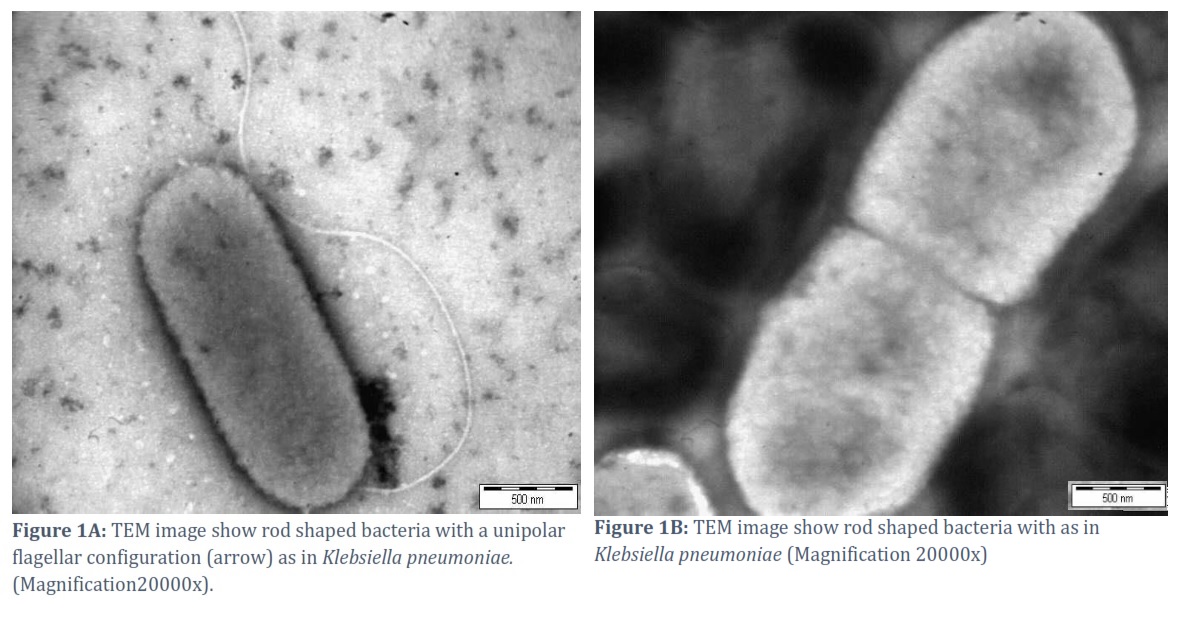

The images shown in Figures 1 to 3 are of Klebsiella pneumoniae and Staphylococcus aureus obtained from TEM examination from my personal laboratory (personal images or from a library?), after being subjected to negative staining. The figures indicate great clarity and the contrast between the bacterial cells and the background is evident through this staining technique. There is a need to discuss the images in relation to similar results, what does each of the result connotes?

The negative staining technique offers several benefits, such as the utilization of a single stain and the elimination of heat fixation for the sample. By employing an acidic stain, negative staining takes advantage of the repulsion between the negative charges of the stain and the bacterial surface, preventing the dye from entering the cell. As a result, negative staining produces a distinct cell appearance against a dark backdrop, offering clear visualization [13]. As the negative staining technique is still valid and applicable to identify virus and bacteria, future studies should be undertaken to explore the use of this technique for various other microorganisms, which causes different types of diseases. Thus, it is believed that this paper will be of value to laboratorians and researchers, particularly, to provide an alternative method for the application ofthe negative staining technique using an electron microscope on various other bacteria and viruses of medical importance.

Conclusion

Negative staining is currently fast disappearing from mainstream microscopy techniques. Thus, this is important to highlight the advantages (this wasn’t discussed explicitly) and applications of the negative staining technique among laboratorians, particularly in the current, fast-paced lab environment.

Author Contributions

MDM conceived the idea. SA designed the experiment. EAA performed the experiments. All authors contributed to the article and approved the submitted version.

Conflict of Interest
